Parent Context

Last updated: 16 November 2026
See Board Studio on Atlassian Marketplace

Overview

On a busy board it is easy to lose track of which parent a card belongs to. Show Parent Context isolates one parent at a time: it opens a floating legend of the parents at the current level and dims everything that does not belong to the parent in focus, so the children of that parent stand out.

Find the controls

Parent Context is control 4 in the canvas toolbar’s hierarchy group. The numbered circles identify controls, not steps.

Canvas toolbar with numbered circles locating Hierarchy, Show family corridors, Reveal family cards, Parent Context, enlarged together with neighbouring controls

Find the family controls. The numbers identify controls, not steps.

  • 1. Hierarchy: choose visible hierarchy levels.
  • 2. Show family corridors: show parent-child paths between displayed cards.
  • 3. Reveal family cards: add the selection’s loaded ancestors and direct children.
  • 4. Parent Context: open the Parents legend used in this guide.

How to turn it on

  1. Select a card whose parent you want to see.
  2. Click Show Parent Context in the canvas toolbar’s hierarchy group, alongside hierarchy visibility, family corridors and family reveal.
  3. The parent legend opens in Following mode and isolates the selected card’s parent.

Active parent-context toolbar button with Hide parent context tooltip and a visible Parents legend on the Northstar Story board

Parent context keeps the following parent legend available beside the Story board.

Click the same button again to close the legend and restore the full board.

How to configure it

Parent Context does not require board configuration. Use the legend to choose whether it follows your selection or stays pinned to one parent.

After opening the legend, select another child card to try Following mode. Click a parent in the legend to switch to Pinned, keeping that parent in focus while you select other work. Click the pinned parent again to return to Following. Close the legend when finished. Unrelated work is dimmed, not removed from the loaded source.

Recognise a pinned parent

Pinning is useful when you want to keep one Epic in mind while checking work elsewhere. In this example, FRON-34 remains highlighted in the legend and the header says Pinned, even after selecting FRON-44, whose parent is FRON-35. Selection and the pinned parent answer different questions.

Parent Context legend marked Pinned with FRON-34 highlighted while the board selection is FRON-44, whose parent is FRON-35

FRON-34 stays pinned while FRON-44, a child of FRON-35, is selected.

Click FRON-34 in the legend again to return to Following. The legend can then follow the selected card’s parent instead of retaining the pin.

Choosing the legend width

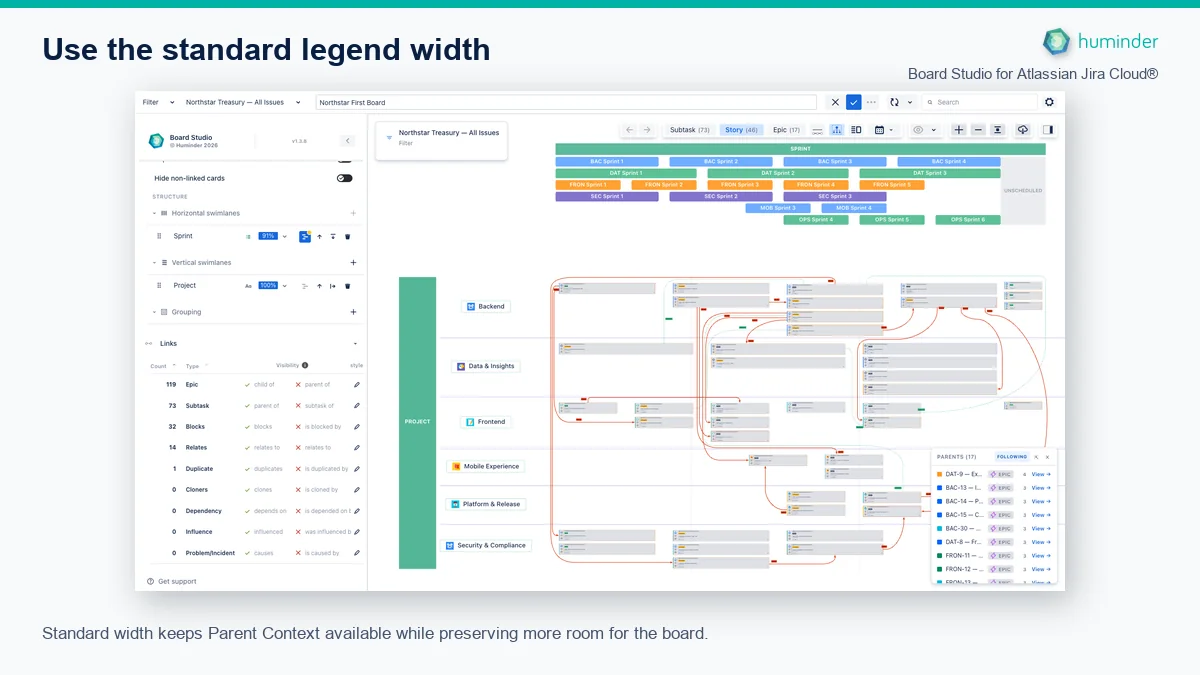

The legend opens at standard width, keeping its parent list compact so more of the board remains visible.

Compact Parents legend with Following mode, highlighted BAC-14, shortened parent names and View actions

The compact Parents legend follows BAC-14 while leaving more canvas space.

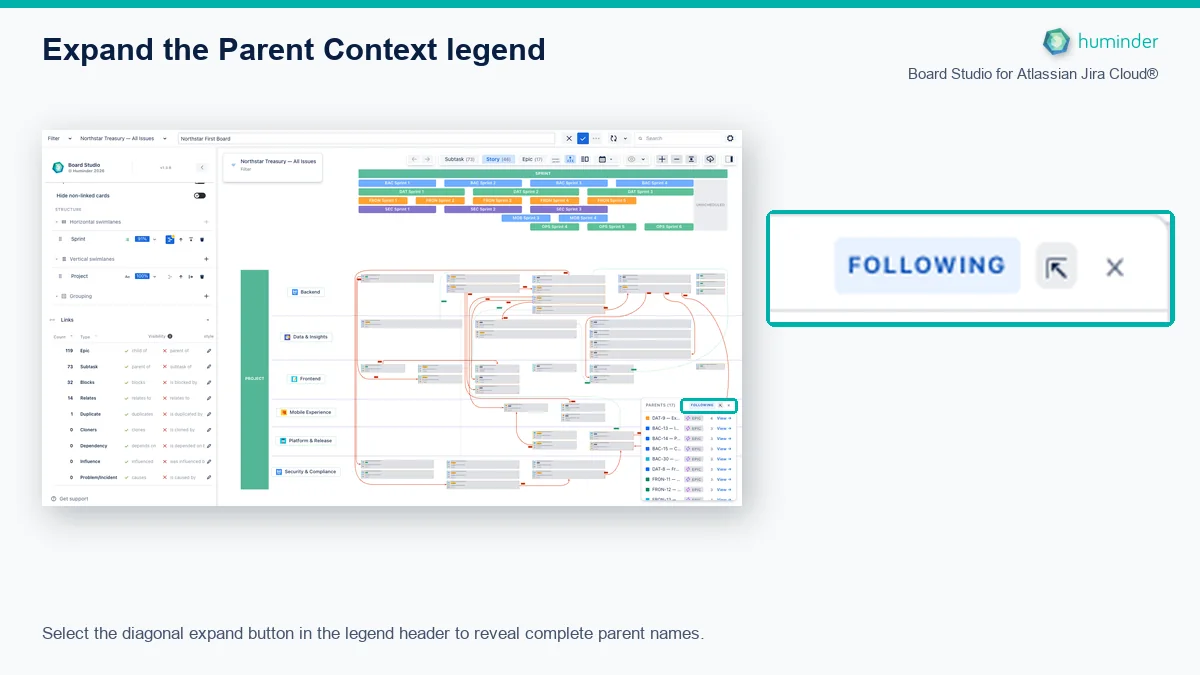

Select the diagonal Expand parent context button in the legend header when you need to read complete parent names.

Compact Parents legend header with Following badge, diagonal expand button and close control

Use the diagonal arrow beside Following to make parent names easier to read.

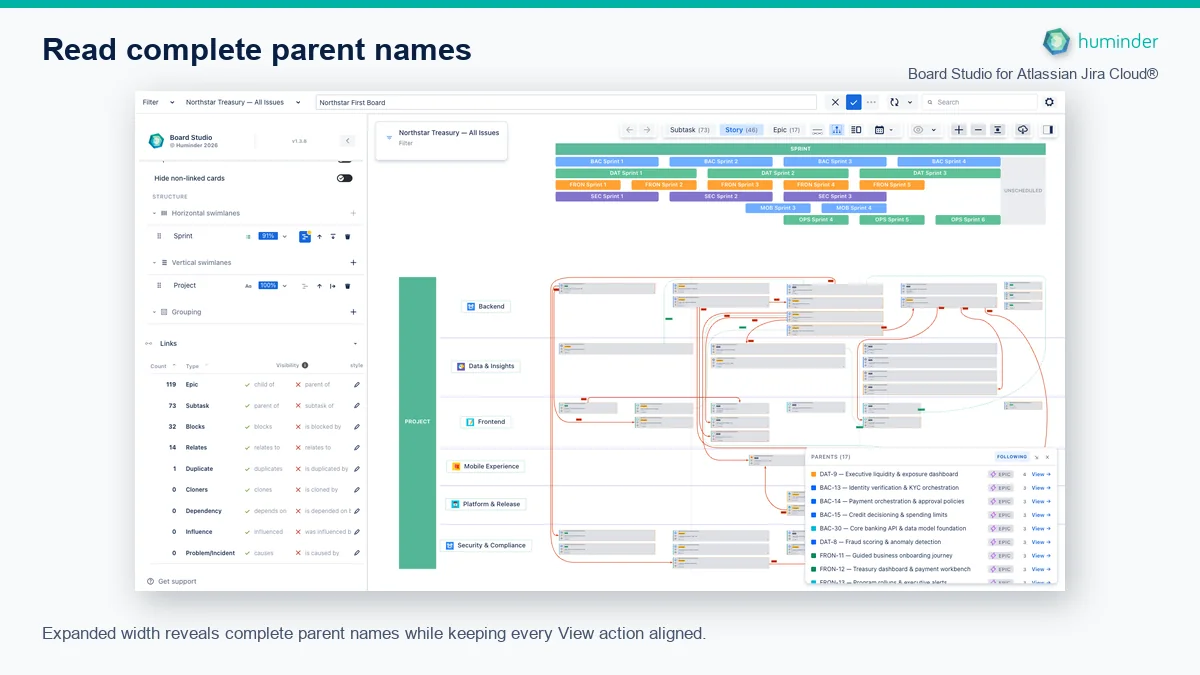

Expanded width gives each parent name more room while keeping its level, child count, and View action aligned.

Expanded Parents legend with complete Northstar Epic names and BAC-14 Payment orchestration and approval policies highlighted

The expanded legend reveals parent names and keeps the View actions aligned.

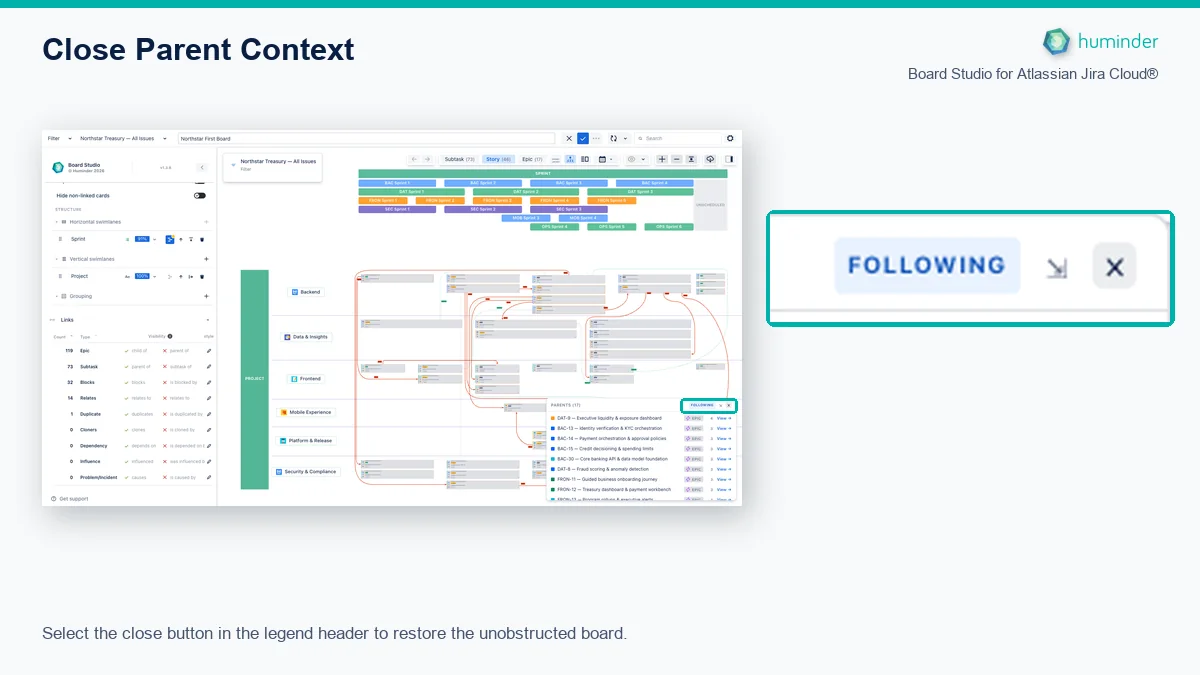

Select the Close legend button beside the width control to close Parent Context and restore the unobstructed board.

Expanded Parents legend header with Following badge, collapse arrow and close button at its upper right

The close button dismisses the legend when you need an unobstructed board.

Following your selection

By default the legend follows your selection. When you turn it on, it reads the cards you have selected and isolates their parent. As you select different cards, the isolated parent updates to match.

The legend header shows a badge for the current mode:

  • Following: the isolated parent tracks your selection.
  • Pinned: the isolated parent stays fixed, whatever you select.
What you do What happens
Turn the toggle on The legend opens in Following mode and isolates the parent of the current selection.
Select cards under one parent (Following) That parent is isolated.
Select cards under several parents (Following) The legend clears the isolation and shows a hint: Multiple parents selected. Choose one to focus.
Select nothing eligible (Following) The isolation clears.
Click a parent in the legend That parent is pinned, and the mode switches to Pinned.
Click the pinned parent again The pin is released, and the mode returns to Following.
Turn the toggle off The isolation clears and the mode resets to Following for next time.

Only cards count towards the selected parent. Edges and group nodes are ignored, each card’s immediate parent is used, and the parent has to be present at the current level for it to be isolated.

Hovering

Hovering over a card still previews its parent, in any mode. The preview does not change the parent you have isolated.

Out of the way of the Inspector

The legend keeps clear of the docked Inspector. It sits to the left of the rail and moves as the rail opens, closes, or resizes, so it never hides behind it. When the isolated parent changes, the legend scrolls that parent’s row into view.

Use cases

  • Read one epic’s children on a crowded board. Select a card in the epic and its siblings stand out while the rest of the board recedes.
  • Step through epics one at a time. Pin the first parent, review it, then click the next parent in the legend.
  • Check where a card belongs. Select it and the parent it rolls up to is the one left bright.

Related

  • Guided Tours and Contextual Help: select Help, then Parent Context for an explanation without opening the legend.
  • Focus Mode: isolate a selection and its dependency chain, by hiding or dimming the rest.
  • Semantic Zoom: move between parents and children across hierarchy levels.
  • Inspector: the legend repositions itself around the docked rail.
